Standard Points

STANDARD POINTS

standard points

Flat point is generally the most used due to its adaptability to any surface and use.
ARSER set screws with flat point allow a uniform support surface and can be adjusted several times at the maximum tightening torque thanks to their accurate planarity.

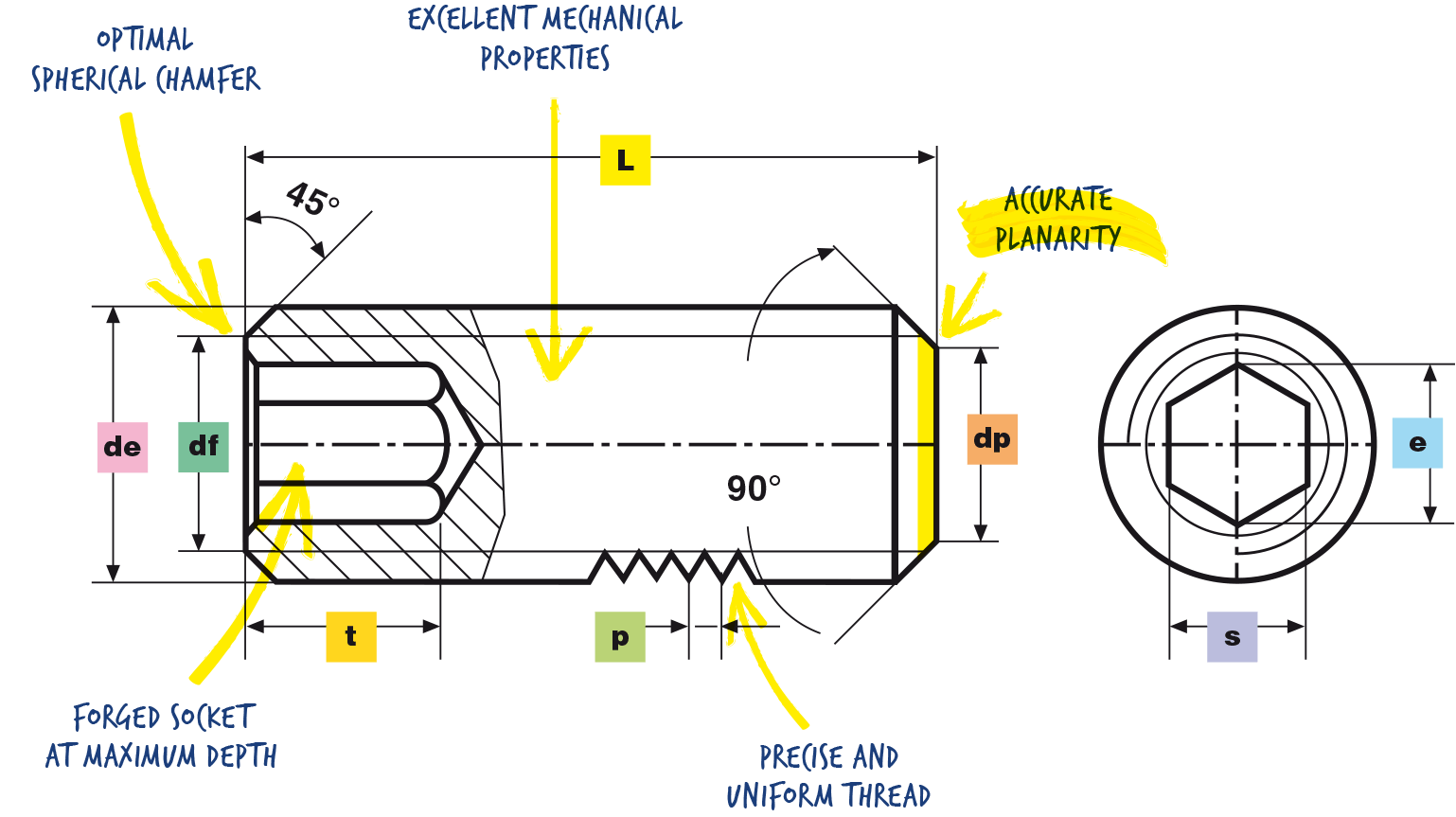

FLAT

EN ISO 4026 (EX UNI 5923 - DIN 913)

Accurate planarity of the flat point to ensure a uniform contact surface; possibility of multiple registration to the max tightening torque.

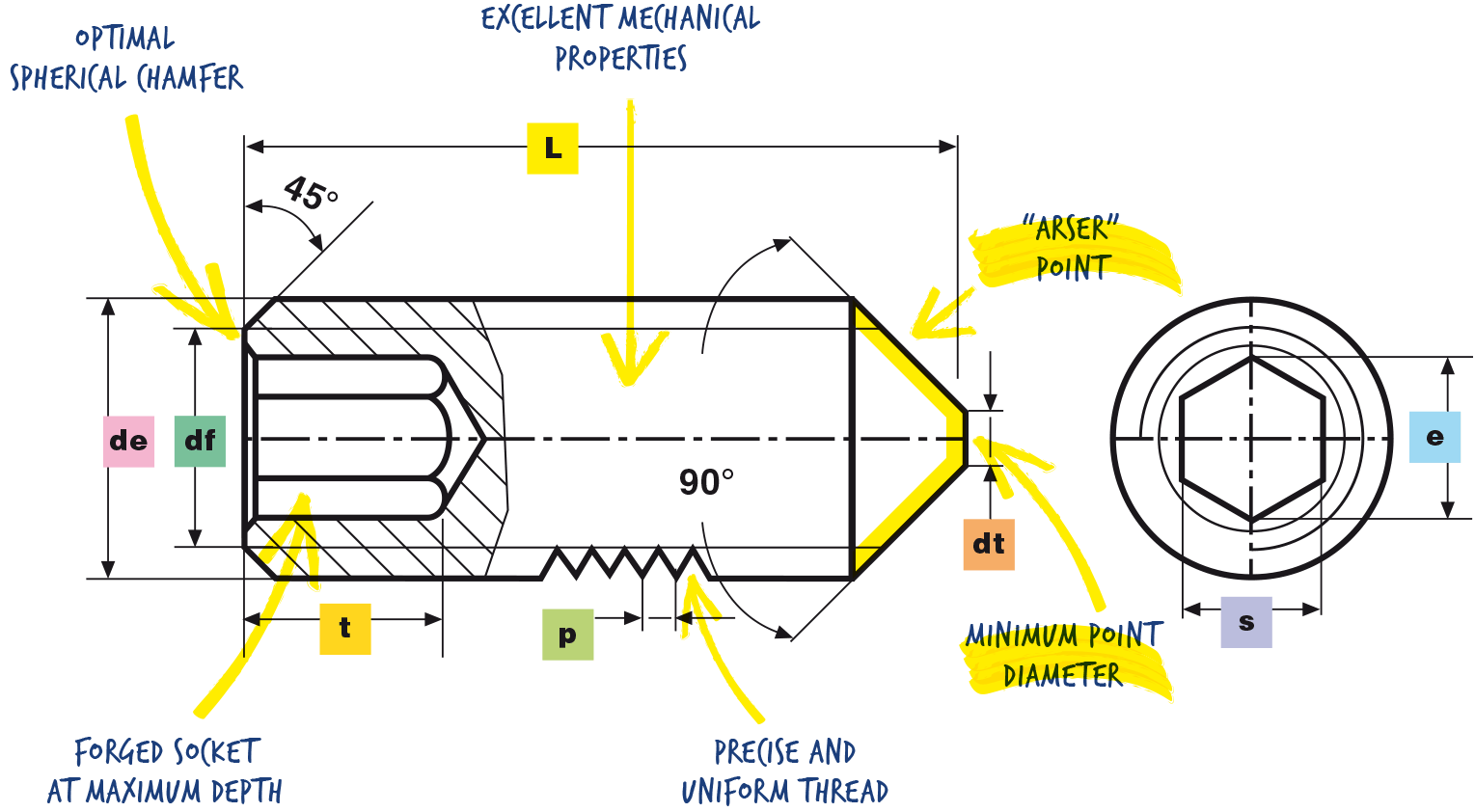

CONE

EN ISO 4027 (EX UNI 5927 - DIN 914)

Precision of the point, decisive for high quality and effective assemblies.

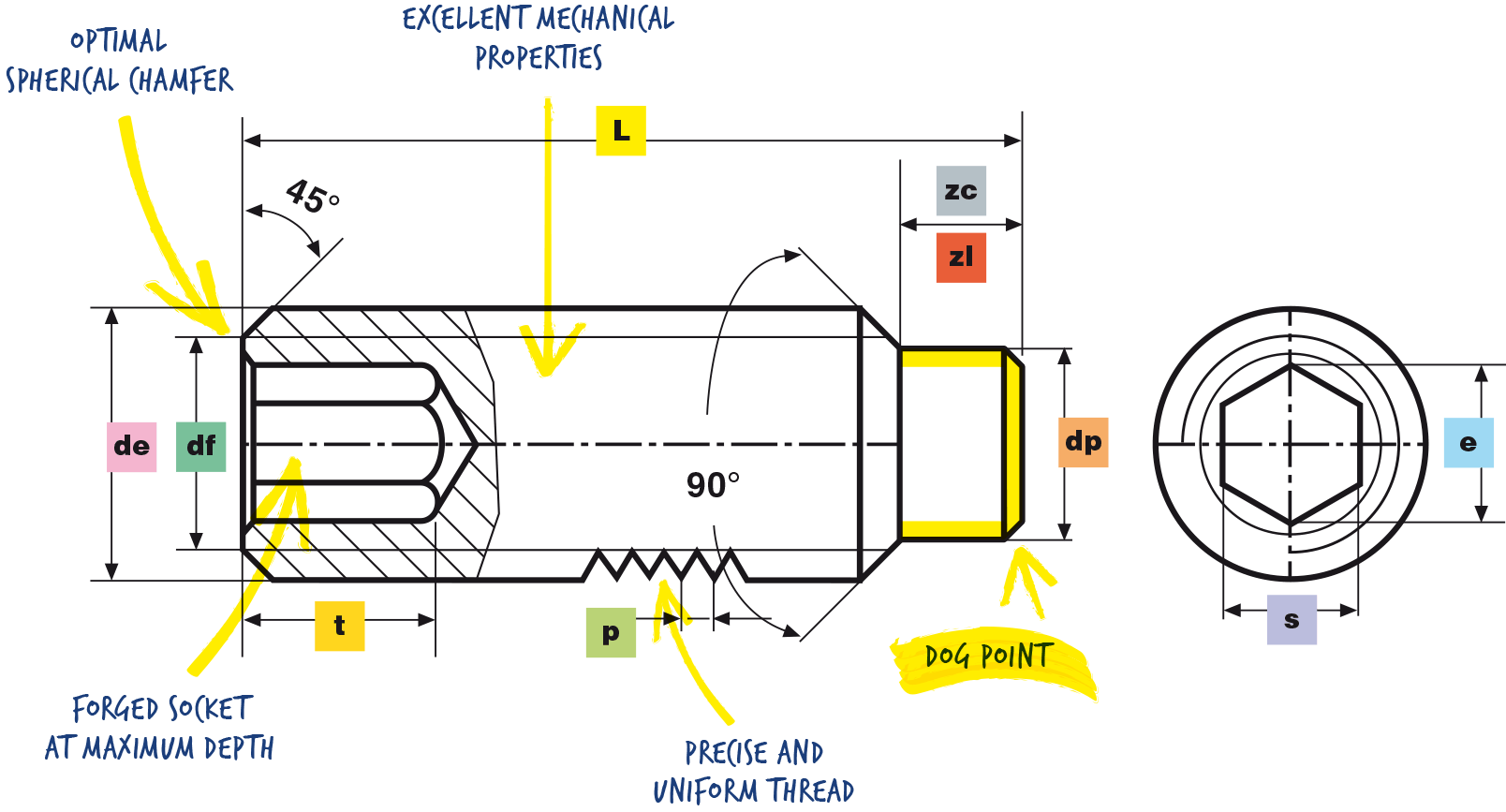

DOG

EN ISO 4028 (EX UNI 5925 - DIN 915)

Quality of the dog point, made by pressing, to ensure max assembly precision.

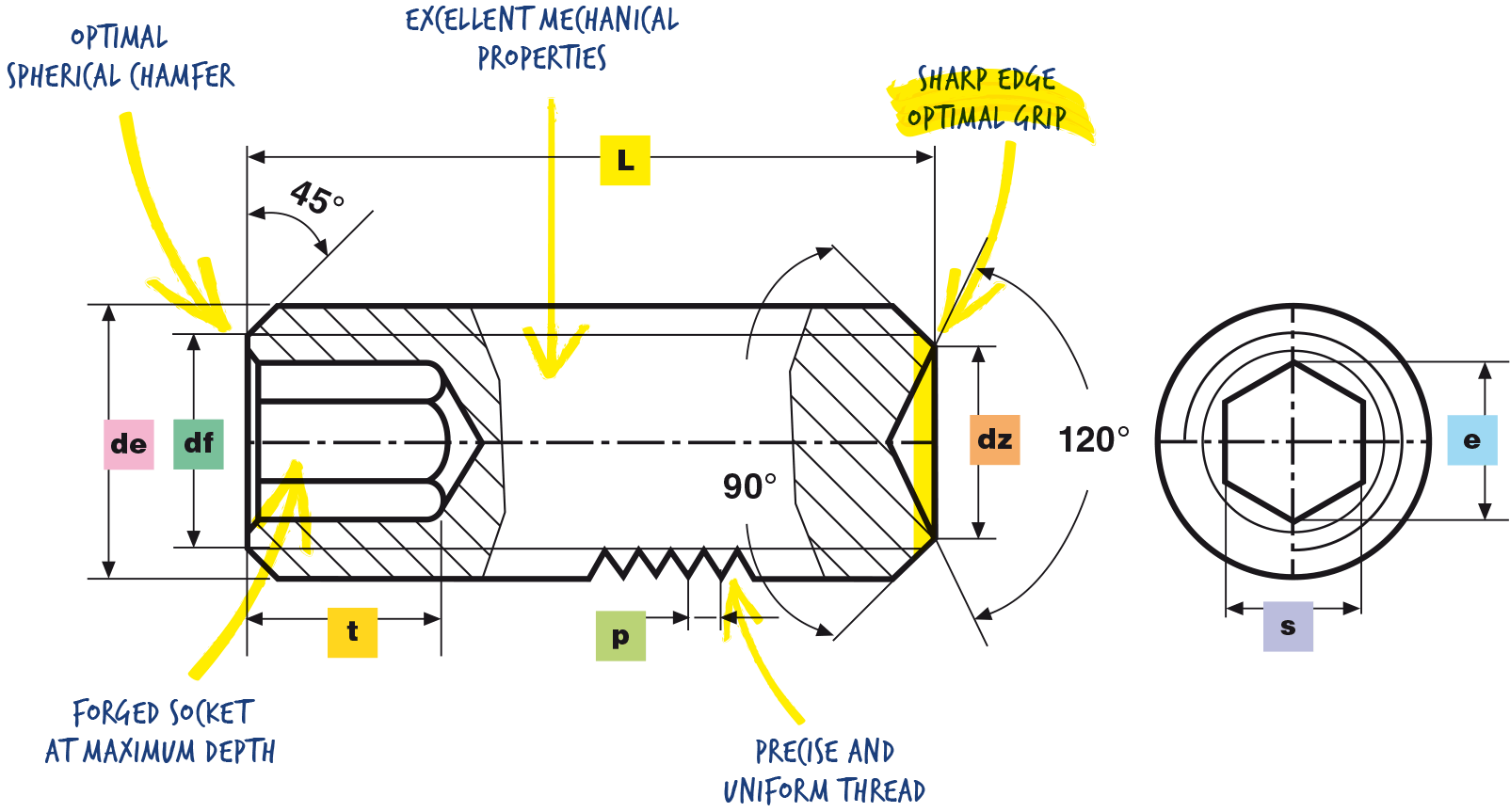

CUP

EN ISO 4029 (EX UNI 5929 - DIN 916)

Locking ensured by cup point with sharp edge, with material of different hardness, obtaining high tightening torques.
